Job Sheet-24M3440D_F2005-S2.wnc

Path : D:\SEJONG\MODEL\2025\A-TECH\24M3440D_SU\250121\2005\2005-1\ Geometry : 24M3440D_F2005_Z04.x_t.wnc P/G : M031202Jan21.htm
X_Min : -157.500,          X_Set_A :   -162.500 Y_Max : 168.501,          Y_Set_A :   173.501 Z_Max : 179.350
X_Max : 157.500,          X_Set_A :   162.500 Y_Min : -168.501,          Y_Set_A :   -173.501 Z_Min : 0.000
X_Center : 0.000 Y_Center : 0.000
X_Length 315.00 Y_Length 337.00 Z_Length 179.35

images/basepart.png

..
===> :Z_Min = 0.00,,,,,,,,,,Z_Min: : 0.00

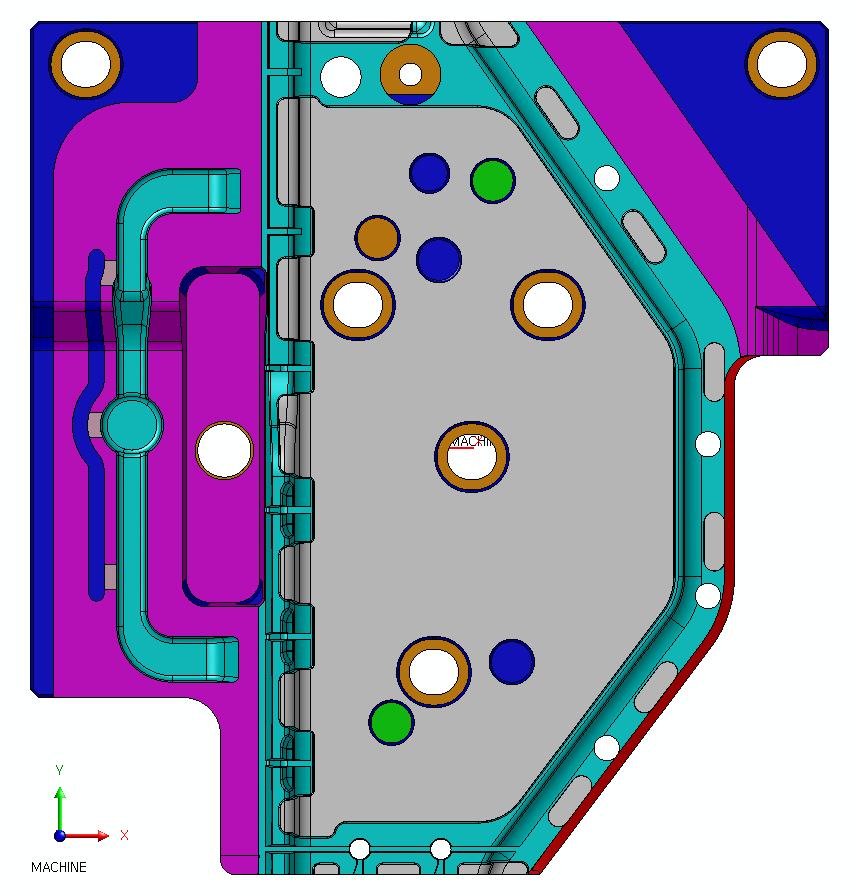

---MC1202-24M3440D_F2005-S2.wnc Jan21.jpg---- , Programmer's Comment : 1H, 캐리어 수정
NCD Toolpath Type T_No Cutter Image D,∮ R_cn Holder Safe Tool Length Zmin
(R_cen) 		Stock Krpm Time
O4501 Z-Level Finishing 13 ToolpathCutterShape 6.00 0.20 R:0.20 Bull-nose, B01-BT50_Hyd-Chuck-20-150-SRS 17.80 131.32 0.20 6.2 00:02
O4502 Planar Finishing 13 ToolpathCutterShape 6.00 0.20 R:0.20 Bull-nose, B01-BT50_Hyd-Chuck-20-150-SRS 17.70 131.17 0.08 6.2 00:06
O4503 Planar Finishing 13 ToolpathCutterShape 6.00 0.20 R:0.20 Bull-nose, B01-BT50_Hyd-Chuck-20-150-SRS 17.80 131.11 0.02 6.2 00:06
1 2 3, Selected : 32940.80mm Total Time : 00:14
(Each-PP) : 55_G155 ○○ [ S1250-#2 ] ○○ ,   Saved File Name : M0312023Jan21.htm, Save time : 14:10:42 , Saved Counter : 3
